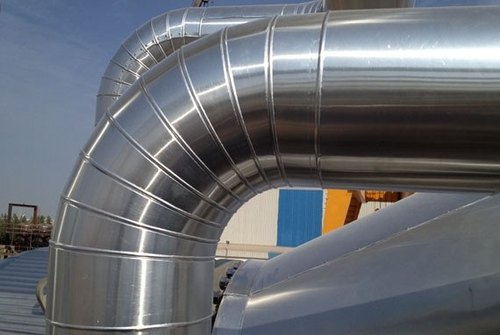

Cold & Cryogenic Insulation

#Cold insulation requires a high level of craftsmanship; any small non-system application or vapour barrier penetration can cause significant icing. Faults cannot just put the process at risk and influence the quality of products but may also lead to considerable energy and evaporation loses or unwanted pipe corrosion.

#The liquefaction, storage and transportation of cryogenic media such as LNG (-160°C) or LPG requires high-performance insulation systems. Parameters such as thermal stresses, vibrations and required safety provisions have to be considered when engineering, manufacturing and installing cold insulation systems for these applications.

#Insulation systems for liquid oxygen (-183°C) and liquid nitrogen (-196°C) require again a different kind of approach. For example, the insulation and cladding of liquid oxygen vessels or pipes must be absolutely grease free to avoid any risk on spontaneous ignition.

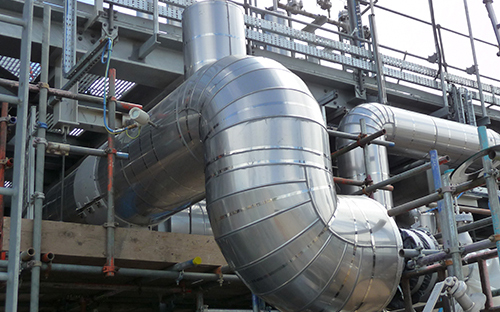

Applications

#Often, multi-layer constructions consisting of different materials, protective layers and at least one but possible more vapour barriers are needed to achieve an adequate cold insulation. Materials like Polyisocyanurate (PIR) and Polyurethane (PUR) rigid foam or cellular glass may be used in these layers and a cladding of e.g. stainless steel, aluminised steel or UV cured GRP is applied to provide the necessary weather protection.

#Thermal, cold and cryogenic insulation can be installed on piping systems with large and small diameters as well as mobile containers, ships, off shore applications, vertical cryo tanks and large storage tanks.

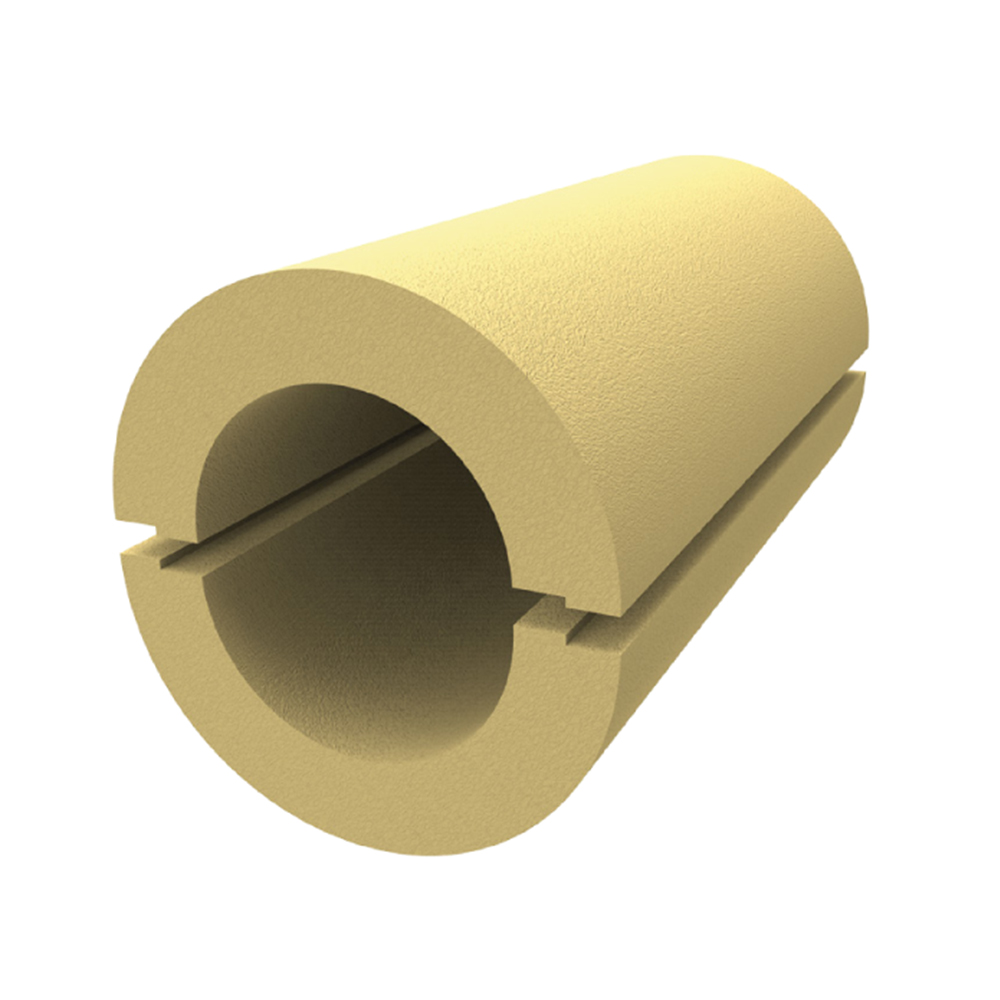

Isoloyd Nilflame

#Rigid Polyisocynurate foam insulation, a specialist low temperature and cryogenic insulation which has low thermal conductivity, closed cell, moisture resistance and enhanced compressive strength at low temperature, whilst not comprising its elasticity so as to avoid cracking.

#CFC Free

#Better extreme-temperature performance

#Best-in-class insulation performance

#Ease of application

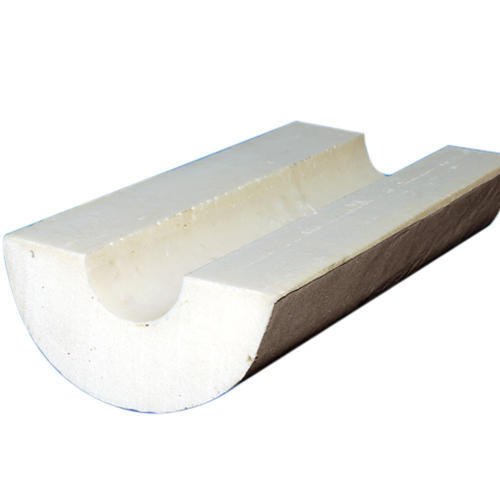

Superfoam

#Easy-fit polyurethane foam for low temperature applications & chilled water pipeline insulation.

#actory molded to any shape

#CFC free

#All-weather all-seasons insulant

#Dramatically reduced installation time

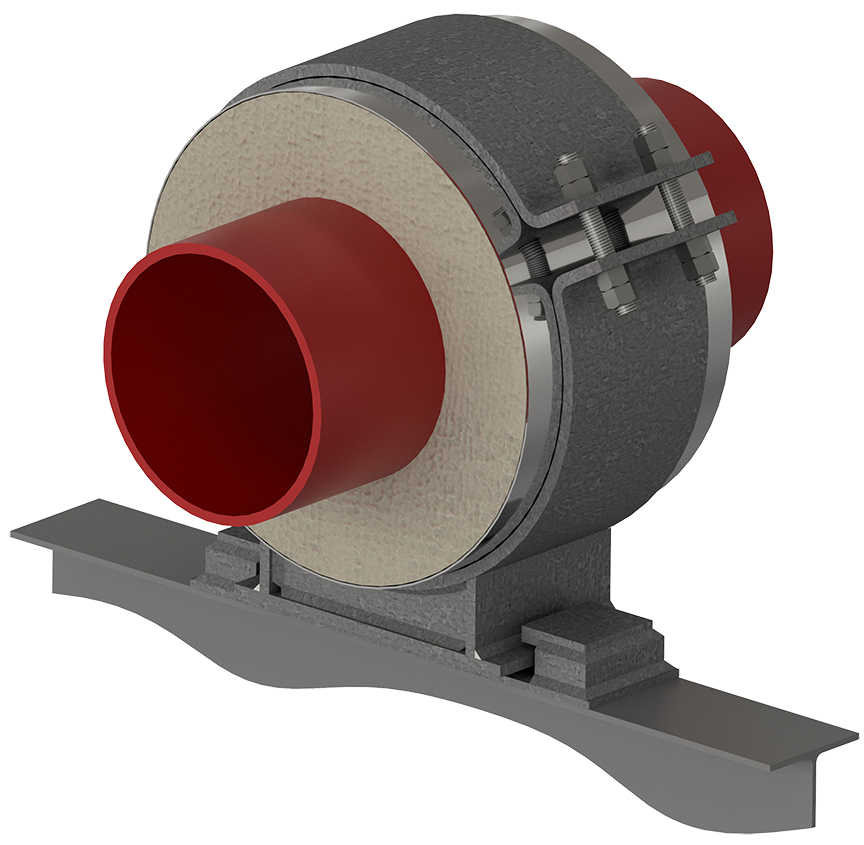

Supertherm Pipe Support

#A heavy duty easy to install prefabricated pipe support system of truly revolutionary proportions Supertherm Pipe Supports are made from specially formulated chemical systems that result in high density rigid polyurethane foam. The very nature of the material immediately yields several advantages.

#Wide density range possible

#Pre-engineered at factory

#Dramatically reduced installation time

#No water penetration

#Neat finish

#Good fire resistance

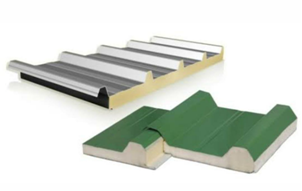

The Panels are available in different configurations

#Shubhom Puf Panel is state-of-the-art Polyurethane, developed exclusively for the tropical climate. The key advantages of PUF (polyurethane) over conventional elastomers and plastics; it is stronger, tougher, more durable, and more versatile. It's valued above the parts made with other conventional materials which often crack, break, tear, swell, deteriorate, and abrade. As a result, they can interrupt and slow down your business operation.

#Insulated Composite Panels Insulation Cores PUR, PIR & Mineral Wool/Rockwool. In addition to rigid PU foam, Sunrise also offers PIR for fire safe applications and Rockwool for high temp & acoustical insulation. The 1000mm wide Panel has a roll formed trapezoidal profile on top side and a micro-ribbed Liner tray on underside. The panel is available in thickness range of 25mm to 60mm. Variety of skin options are available for top skin. Bottom liner shall however be pre-painted Galvanised steel sheet, OR 0.080mm Embossed Aluminium Foil. Panels are offered in customized lengths as required.

Tongue-n-groove type Wall Panel in two types of joinery configurations

#Cold room, Blast freezers for food, marine, frozen food, floriculture, food processing industry

#Cold Storages, pack houses, ripening rooms.

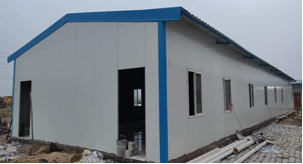

#Telecom shelters, Prefab shelters & defence shelters

#Cold rooms for hotels, restaurants

#Refrigerated Vehicles and containers

#Air handling units for HVAC Industries

#Food & Beverage Processing Plants

#Air conditioned, Ventilated factory sheds, commercial and residential buildings

#Clean rooms

#Auto Industry

#Paint shop

#Mortuary cabinets
